WiFi Settings

SPR Compability​

Device isolation today requires a card with AP/VLAN support. This is presented under the Intefaces tab under wireless settings.

wifi-spr-compatibility

SSID​

The SSID name can be set by navigating to WiFi ⇨ Radio Settings and typing in the new SSID. After hitting enter or leaving the field, it will update and restart with the new SSID.

wifi-ssid

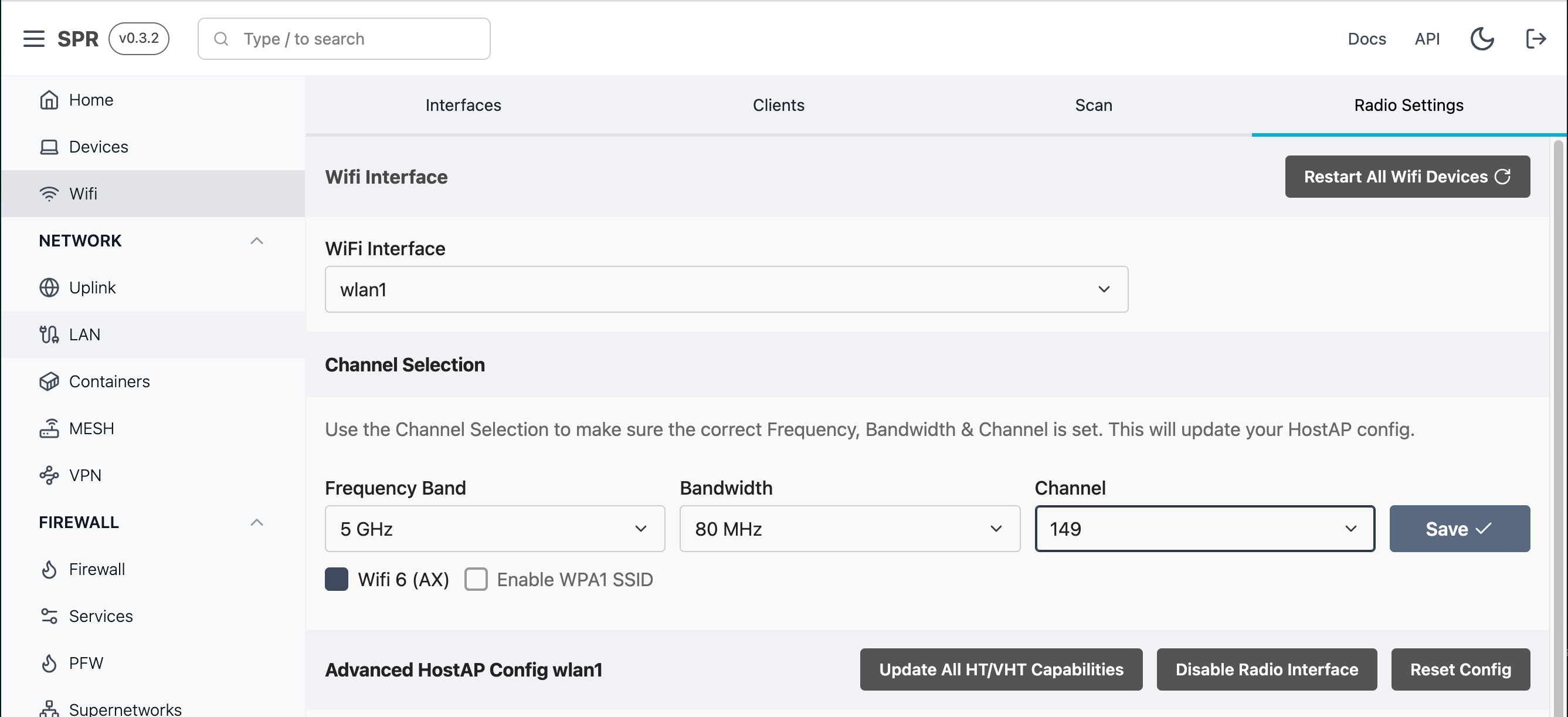

Channel Configuration​

wifi-ssid

You can also run a scan with an unused radio to try to determine available channels wifi-scan

Enabling WiFi 6​

SPR will detect if WiFi 6 is supported. If so, select the WiFi 6 button and hit save. This will configure the AP settings to support WiFi 6 protocol settings.

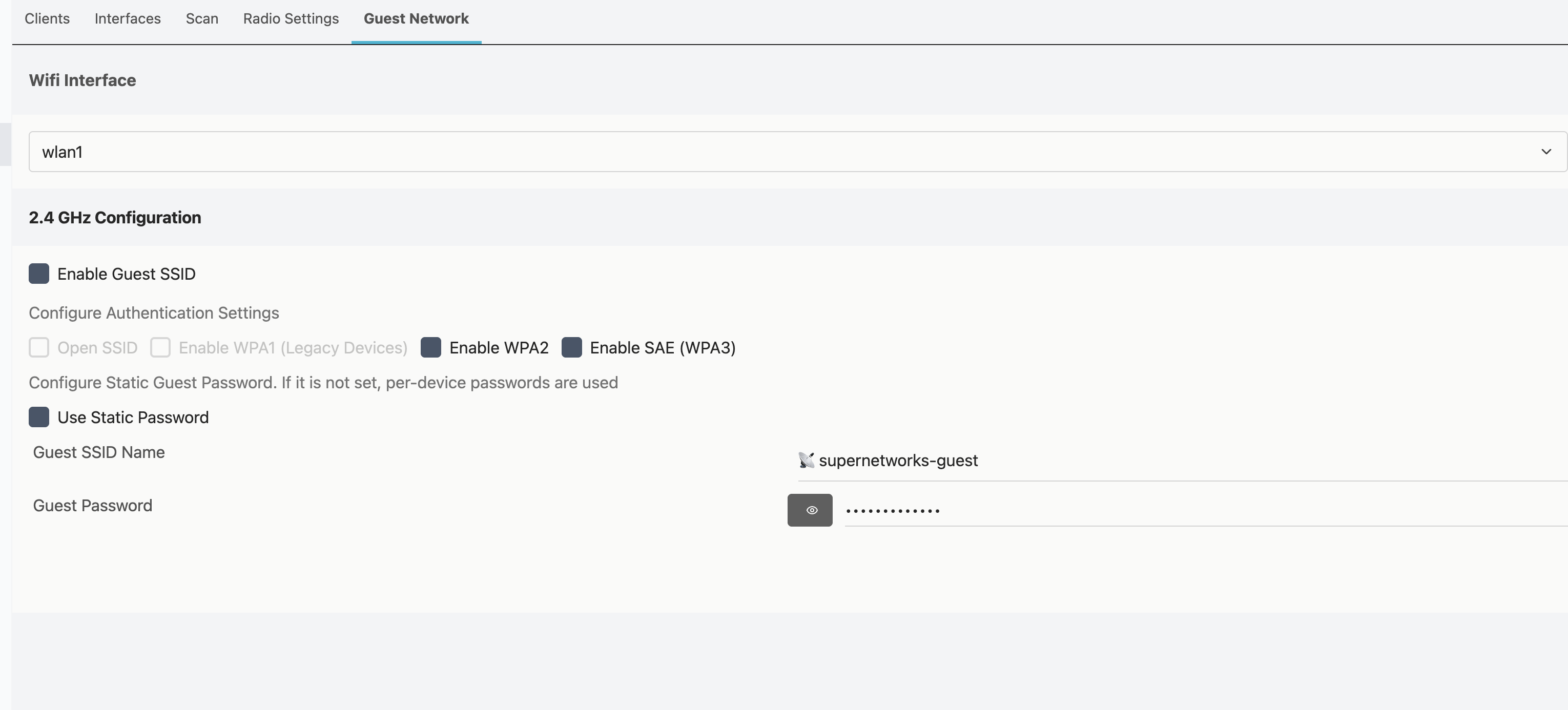

Guest Networks​

SPR supports loading a Guest Network when the hardware supports it.

wifi-guest

Legacy WPA1 Support​

Unfortunately, some older devices do not support WPA2 or WPA3. If your card supports it, SPR can enable WPA1 on the Guest SSID.

Tuning Capabilities​

There are various capabilities available for 802.11 HT , 802.11AC (VHT), and 802.11AX (HE). SPR will auto-detect and assign these capabilities with the "Update All" button. They can also be selectively modified.

If you need additional options, please file an issue

Fast Roaming (802.11r/k/v)​

When you run more than one access point on the same SSID — extra radios or mesh nodes — these 802.11 amendments help clients hand off cleanly as they move:

  • 802.11k (neighbor reports) lets a client ask the AP for a list of nearby APs on the same network, so it can find a better roam target without a slow full scan. SPR enables this by default: the hostapd template sets rrm_neighbor_report, rrm_beacon_report, and rrm_link_measurement_report.
  • 802.11v (BSS Transition Management) lets the AP suggest that a client move to a specific, better AP. It is controlled by the per-radio bss_transition option, which is off by default. SPR's assisted roaming relies on 802.11v to steer clients, so bss_transition must be enabled on both the source and target interfaces before a hand-off can be sent.
  • 802.11r (Fast BSS Transition) speeds up re-authentication when a client roams, making the hand-off near-seamless (useful for voice and video). It is available in hostapd but is not turned on in SPR's default build.

Network-assisted roaming​

Beyond letting clients decide on their own, SPR can actively steer them toward the best AP. The Wi-Fi service watches the network topology and, for each Wi-Fi client whose signal drops below a threshold, looks for another AP broadcasting the same SSID and sends an 802.11v BSS transition request to move the client there. Each attempt is observed afterward and recorded, and a small learning model tracks which transitions actually improve signal so future decisions get better.

This feature stays off unless the /configs/wifi/roam_enable flag file is present. While it is off, the roaming endpoints report disabled and no transitions are sent.

Configuring roaming​

Assisted roaming is configured through the API rather than a dedicated settings screen. The relevant routes are:

  • GET / PUT /hostapd/roaming/config — read or update the roaming controller settings
  • GET /hostapd/roaming/status — whether roaming is enabled, the active config, and counts of history and model entries and in-flight transitions
  • GET /hostapd/roaming/history — recent roam events
  • GET /hostapd/roaming/model — the learned per-transition statistics

Key config fields include:

  • DryRun — when true (the default), SPR only logs the moves it would make instead of sending them
  • RSSIThresholdDBM — only consider steering a client whose signal is weaker than this (default -70)
  • MinimumImprovementDBM — required signal gain before a move is considered worthwhile
  • PollIntervalSeconds / ObservationDelaySeconds — how often to evaluate clients and how long to wait before checking the result
  • CooldownSeconds / MaxTransitionsPerHour — rate limits that keep a client from being bounced repeatedly
  • AllowedInterfaces — restrict steering to specific radios (empty means all)

Viewing roaming status and history​

GET /hostapd/roaming/status shows whether roaming is on along with the current settings, and GET /hostapd/roaming/history returns recent hand-off records — each with the client MAC, source and target interface, the signal before and after, and the outcome (for example succeeded, ignored, or moved_elsewhere).

Troubleshooting​

If the wifi fails to start, try the following:

  1. Hit Reset Config
  2. Hit Enable HostAP
  3. Re-configure your SSID name and channel settings and hit save
